Features: |
|
| Designed for Yuneec H520 |
Yuneec H520 is one of the flagship models of this producer. With six-rotor design, the drone maintains a very good stability throughout the flight. The basic kit allows for up to 25 minutes of uninterrupted flight, maximum speed of 60km/h as well as maximum distance of around 0,7 kilometers. The greatest advantage of 4Hawks antenna is that it significantly increases the range of Yuneec H520, so the drone can reach much further than it initially can. 4Hawks antenna for Yuneec H520 model is operating in 2.4GHz with 14dBi gain as well as 5GHz frequency with 16dBi gain. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability. With plug-and-play construction of 4Hawks antenna, mounting was never as easy as now. The entire set is lightweight and uniform. Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click” to 5 different positions. This way you can be sure that you do not lose the connection with your drone. |
 |
 |
 |
 |
 |
 |
 |
| Extender Flight Range |
Noise removal from other devices |
Improved video signal |
Adjustable signal direction |
High quality, lightweight design |
Complete solution |
Specification |
| Electrical & mechanical parameters of Raptor renge extender. |
 |
Electrical parameters |
| Frequencies |
Port 1: 2.40 - 2.50 GHz
Port 3: 2.40 - 2.50 GHz |
| Gain |
Port 1: 14 dBi (+/- 1 dBi)
Port 3: 14 dBi (+/- 1 dBi) |
| VSWR |
Port 1: < 1.20 (max. < 1.40)
Port 3: < 1.20 (max. < 1.40) |
| Beamwidth |
Port 1: 35°/45°
Port 3: 35°/45° |
| Polarization |
Port 1: Vertical
Port 3: Vertical |
| Impedance |
Port 1: 50 Ω
Port 3: 50 Ω |
 |
Mechanical parameters |
| Material |
Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
|
| Weight |
~ 560g (470g Antenna + 90g Mounting) |
| Dimensions |
29.2 x 18.2 x 2.1 cm
|
| Connection |
Port 1: RP-SMA female
Port 3: RP-SMA female |
| Tilt adjustment |
5 tilt positions, OnClick system |
| Mounting type |
Attach to the controller by one screw (Removable) |

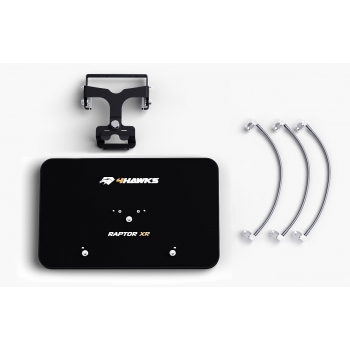

In the box |
| Accesories included to the Raptor range extender antenna. |
 |
